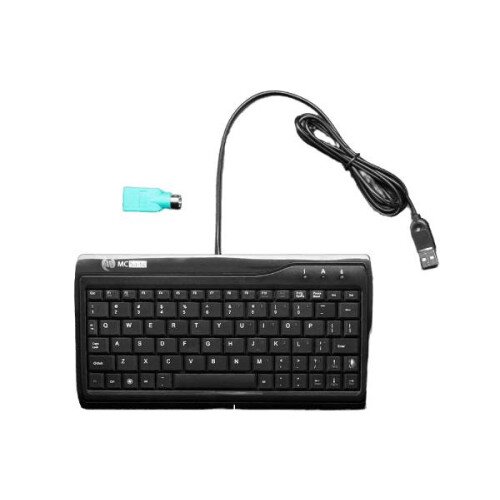

Discover Adafruit Miniature Keyboard - Microcontroller-Friendly PS/2 and USB

By: Adafruit

Model: 857

Sku: CEWHR6EKAB

$56.99

Availability: In Stock In Stock

New

  • Microcontroller-Friendly PS/2 and USB
  • 78 Keys
  • Cable length: 48 inches / 1.25m
Quantity:
  • Add to Wishlist
  • Add to Compare

Add a typing interface to your project with this microcontroller-friendly miniature keyboard. We found the smallest PS/2+USB keyboard available, ! It's small but usable to make a great accompaniment to either a microcontroller project or a computer such as the Beagle Bone or Raspberry Pi. The keyboard supports either USB or PS/2 interface and will automatically adjust to whichever its plugged into.

Comes with a full QWERTY keyboard, and has a num-lock number pad. Nearly all microcontrollers have existing PS/2 keyboard examples that would work fine with this keyboard. For Ardiuno users, we tried out PJRC's PS2_Keyboard library with great success - just check the 'simple text' example for which pins you can connect to on your 'duino (on an Uno we used digital pins 2 and 3). We suggest our PS/2 adapter cable to make the wiring easy. Start typing and you'll see the data appear in the serial terminal!

To use with a Raspberry Pi, change the keyboard to USA PC104 layout:

  • Switch to root user.
  • Run 'dpkg-reconfigure locales' and change from en_GB.UTF-8 to en_US.UTF-8.
  • Run 'dpkg-reconfigure keyboard-configuration' and change the keyboard to USA PC104 (again, change as needed).

In the Box

  • Adafruit Miniature Keyboard - Microcontroller-Friendly PS/2 and USB
