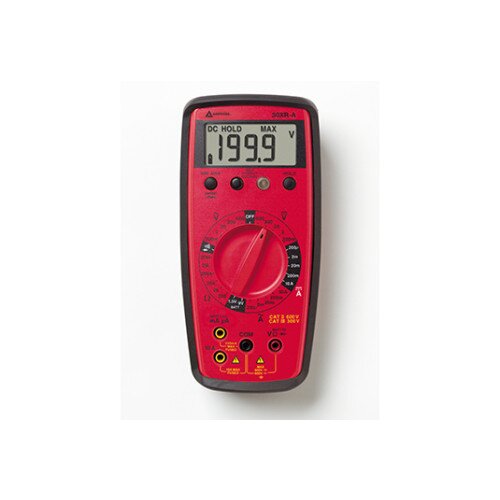

Amprobe 30XR-A Digital Multimeter With VolTect Non-Contact Voltage Detection
Amprobe 30XR-A Digital Multimeter With VolTect Non-Contact Voltage Detection Display Gallery Item 1

Amprobe 30XR-A Digital Multimeter With VolTect Non-Contact Voltage Detection Price Worldwide

By: Amprobe

Model: 2727774

Sku: 8YA037CYV9

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Non-contact voltage detector
  • Separate door for easy battery and fuse access
  • Manual ranging; display: 3-1/2 digit LCD, 1999 counts
  • Display update rate: 2.5/sec, nominal
  • Power battery: 9 V NEDA 1604, JIS 006P, IEC 6F22
  • Operating temperature: 0 °C to 45 °C at < 70 % R.H.
  • Storage temperature: -20 °C to 60 °C, 0 to 80 % R.H. with battery removed from meter
  • Low battery indication
  • Overrange indication
  • Min/max and data Hold
  • DC Voltage: 200.0 mV 2.000 V, 20.00 V, 200.0 V, 500 V
  • AC Voltage: 200.0 mV 2.000 V, 20.00 V, 200.0 V, 500 V
  • DC Current: 200.0 µA 2.000 mA, 20.00 mA, 200.0 mA, 10 A
  • AC Current: 200.0 µA 2.000 mA, 20.00 mA, 200.0 mA, 10 A
  • Resistance: 200.0 O, 2.000 kO, 20.00 kO, 200.0 kO, 2.000 MO, 20.00 MO
  • DC Voltage ranges: 200 mV, 2 V, 20 V, 200 V, 600 V
  • DC Voltage accuracy: All ranges: ± (1 % rdg + 1 dgt)
  • DC Voltage resolution: 100 µV
  • DC Voltage input impedance: 10 MO
  • AC Voltage (45 Hz to 500 Hz) ranges: 200 mV, 2 V, 20 V, 200 V, 600 V
  • AC Voltage (45 Hz to 500 Hz) accuracy: All ranges: ± (1.5 % rdg + 4 dgts)
  • AC Voltage (45 Hz to 500 Hz) resolution: 100 µV
  • AC Voltage (45 Hz to 500 Hz) input impedance: 10 MO
  • DC Current ranges: 200 µA, 2 mA, 20 mA, 200 mA, 10 A
  • DC Current accuracy: 200 µA to 200 mA ranges: ± (1.5 % rdg + 1 dgt)/ 10 A range: ± (2.0 % rdg + 3 dgts)
  • DC Current resolution: 0.1 µA
  • DC Current voltage burden (max): 200 µA range: 1 mV/µA 2 mA range: 100 mV/1mA, 20 mA range: 13 mV/1 mA, 200 mA range: 4.6 mV/1 mA, 10 A range: 40 mV/1 A
  • AC Current (45 Hz to 500 Hz) ranges: 200 µA, 2 mA, 20 mA, 200 mA, 10 A
  • AC Current (45 Hz to 500 Hz) accuracy: 200 µA to 200 mA ranges: ± (2.0 % rdg + 4 dgts), 10 A range: ± (2.5 % rdg + 4 dgts)
  • AC Current resolution: 0.1 µA
  • AC Current voltage burden: See DC Current
  • Non-contact voltage detector (NCV) AC volts: 70 to 600 V AC
  • Non-contact voltage detector (NCV): Red LED and Audible Indicator
Stock Request Notify When Available

For non-contact voltage testing, Amprobe 30XR-A Digital Multimeter offers Voltect non-contact voltage technology built into the 30XR-A along with a full complement of measurement functions.

In the Box

  • Amprobe 30XR-A Digital Multimeter with VolTect Non-Contact Voltage Detection
  • Test Leads (TL36A)
  • 9 V Battery (Installed)
  • Magne-Grip Holster With Magnetic Hanging Strap
  • Spare Fuse
