Arduino Yun Board - Shop Now and Save!

By: Arduino

Model: A000008

Sku: WMMAMN0RBL

Availability: Out of stock New

Availability: Out of stock

  • Microcontroller: ATmega32U4
  • Operating Voltage: 5V
  • Input Voltage: 5 V
  • Digital I/O Pins: 20
  • PWM Output: 7
  • Analog I/O Pins: 12
  • DC Current per I/O Pin: 40 mA on I/O Pins; 50 mA on 3,3 Pin
  • Flash Memory: 32 KB (of which 4 KB used by bootloader)
  • SRAM: 2.5 KB
  • EEPROM: 1 KB
  • Clock Speed: 16 MHz
  • Processor: Atheros AR9331
  • Architecture: MIPS
  • Operating Voltage: 3.3V
  • Ethernet: 802.3 10/100Mbit/s
  • WiFi: 802.11b/g/n 2.4 GHz
  • USB Type: 2.0 Host
  • Card Reader: Micro-SD
  • RAM: 64 MB DDR2
  • Flash Memory: 16 MB

Show more (16)

Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Arduino YUN is the perfect board to use when designing connected devices and, more in general, Internet of Things projects. It combines the power of Linux with the ease of use of Arduino.

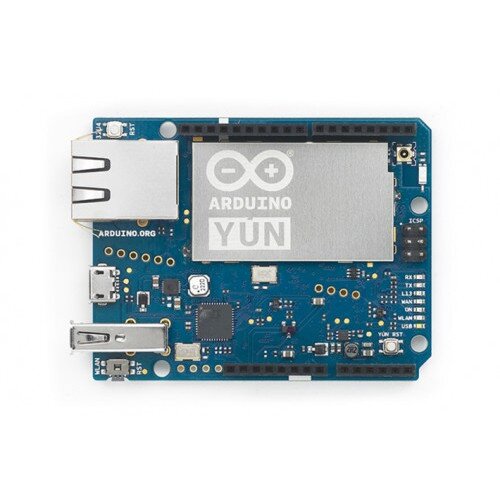

The Arduino Yun is a microcontroller board based on the ATmega32u4 and the Atheros AR9331. The Atheros processor supports a Linux distribution based on OpenWrt named Linino OS. The board has built-in Ethernet and WiFi support, a USB-A port, micro-SD card slot, 20 digital input/output pins (7 of them can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and 3 reset buttons.

NB : In some countries, it is prohibited to sell WiFi enabled devices without government approval. While waiting for proper certification, some local distributors are disabling WiFi functionality. Check with your dealer before purchasing a Yun if you believe you may live in such a country.

The Yun distinguishes itself from other Arduino boards by its ability to communicate with the Linux distribution onboard, offering a powerful networked computer with the ease of an Arduino. In addition to Linux commands like the cURL, you can write your own shell and python scripts for robust interactions. The Yun is similar to the Leonardo with the ATmega32u4, except that it has Linux on board. (has built-in USB communication, eliminating the need for a secondary processor).

  • The power supply system provides 5V on AREF;
  • The layout has been modified, adding two holes for USB signals and two holes for GP6 and GPIO13(LED2).

In the Box

  • Arduino Yun Board
