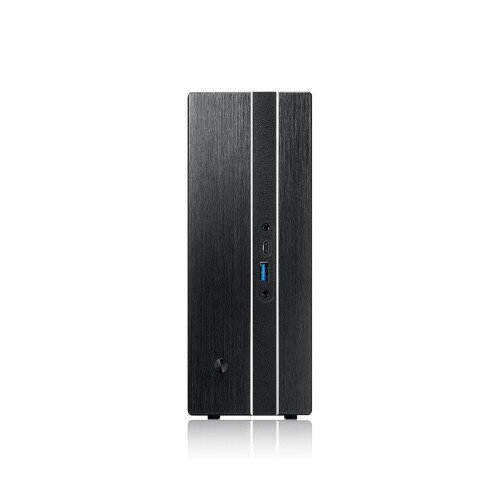

ASRock DeskMini GTX1070 Z270 Mini-PC Barebone
ASRock DeskMini GTX1070 Z270 Mini-PC Barebone Display Gallery Item 1
ASRock DeskMini GTX1070 Z270 Mini-PC Barebone - 2 Display Gallery Item 2
ASRock DeskMini GTX1070 Z270 Mini-PC Barebone - 3 Display Gallery Item 3
ASRock DeskMini GTX1070 Z270 Mini-PC Barebone - 4 Display Gallery Item 4
ASRock DeskMini GTX1070 Z270 Mini-PC Barebone - 5 Display Gallery Item 5

ASRock DeskMini GTX1070 Z270 Mini-PC Barebone - Shop Now and Save!

By: ASRock

Model: DeskMini GTX1070 (Z270)

Sku: 9ALC75RCR1

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • CPU: Supports Intel 7th/6th Gen LGA1151 Processors (Max. TDP 65W)
  • Cooler: Supports Intel LGA115x CPU Cooler (Max. Height ≦ 46mm)
  • Memory: Supports 2 x SO-DIMM DDR4-2666MHz, Max. 32GB (non-ECC)
  • Chipset: Intel Z270
  • Graphics: NVIDIA GeForce GTX 1070 (8GB GDDR5X)
  • Graphics Output: HDMI (4K 30Hz) / HDMI (4K 60Hz) / DisplayPort (4K 60Hz) / mini DisplayPort (4K 60Hz)
  • Audio: Head Phone with Mic Jack Mic-In Realtek ALC283
  • Front USB: USB 3.1 Gen1 Type-C / USB 3.1 Gen1 Type-A
  • Rear USB: 4 x USB 3.1 Gen1 Type-A
  • Storage: M.2_1: Type 2280/2260 PCIe Gen3 x4 & SATA 6Gb / M.2_2: Type 2280/2260/2242 PCIe Gen3 x4 / M.2_3: Type 2280/2260 PCIe Gen3 x4 & SATA 6Gb / 2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)
  • LAN: RJ45 Gigabit LAN / Intel Gigabit I219V
  • WLAN: M.2 (key E 2230) Slot for Wi-Fi + BT Module
  • Connectors: 2 x USB 2.0 Headers / Front Panel Header / 2 x 4-Pin Fan Connectors / GPU Fan Connector / 4-Pin DC Power DIN (Supports 19V Power Adapters) / RGB LED Header
  • Power Unit: 220W/19V Adapter
  • Security: Kensington Lock / Key Lock
  • OS: Microsoft Windows 10 64-bit compliant
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Redefine a PC’s Size

DeskMini GTX/RX features VERY small size and maximum hardware flexibility in 2.7 Liter. Select processor, memory, storage and MXM graphics to customize your DeskMini GTX/RX.

The Small Big

DeskMini GTX/RX features with tower PC grade performance and expansions within 1/20 size only. But offering bigger desktop space with large monitor, such a Grand Compact to you.

Brand new Micro STX

We expand board size just 2-inch from Mini STX, then we get:

Epic Core Performance

Brand new DeskMini GTX/RX features with 5+1 phase to provide superior power for Intel 8th Gen high end 6 Core processors. Boost mighty performance in 2.7L size.

Superior Memory Speed

DeskMini GTX/RX adopts with new Z370M-STX MXM motherboard, to allow DDR4-3200+ (OC) memory speed! Superior memory speed provides faster gaming experience.

Outstanding Silence

DeskMini GTX/RX draws less than 22dB at idle and delivers a low acoustic in most applications. Let’s Rock and Roll with your teammates in game by this silence mini PC!

Power Saving

DeskMini GTX/RX is one of the most power-efficient in the PC market. It offers an idle power reduction of 40% and 28% in loading.

Fit in widely fields

Tiny DeskMini GTX supports NVIDIA GeForce GTX1080 for Gaming, AR/VR PC, and deep Learning. And it is a mini workstation with NVIDIA Quadro cards as well.

Discrete MXM Graphics

It’s scalable and upgradable! DeskMini GTX/RX supports MXM Type A/B/B+ graphics cards for maximum performance to fulfill the need of gaming and other task with ease.

Multi 4K60Hz Outputs

Through discrete MXM graphics card, you can build triple 4K60Hz displays with three video outputs: HDMI, DisplayPort and mini DisplayPort.

Triple Ultra M.2

Triple of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA 6Gb/s M.2 modules.

Intel Optane Memory Ready

Supports Intel Optane memory technology and Intel Optane storage technology that redefines a new standard of high performance and responsiveness.

RGB LED Header

New generation DeskMini GTX/RX adopts with 4 rear USB 3.1 Gen1 Type-A ports. Bring convenience to daily applications.

USB Type-C

A latest reversible USB Type-C design that fits the connector either way.

Stable and Cool

Aluminum MOSFET Heatsink provides great heat dissipation to ensure system stable in loading. And the dual PWM fan connectors for an extra cooling fan.

Double Capacity

Up to 4TB! DeskMini GTX/RX offers dual 2.5 inches SATA 6Gb/s HDD/SSD bay. Such large storage only in a small 2.7 Liter!

Simply Installation

Quickly and Easy! DeskMini GTX/RX uses motherboard tray base and main chassis design; you can upgrade components in a short time.

In the Box

  • ASRock DeskMini Z270 Mini-PC Barebone
  • 2 x SATA Data with Power Cable
  • Screws Pack
  • Intel AC-3168 Wi-Fi Kit
