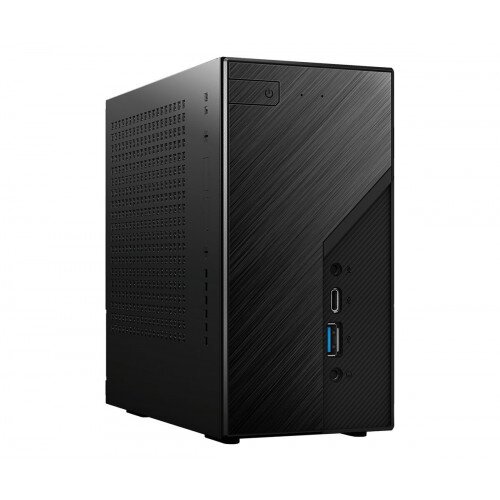

ASRock DeskMini X300W Mini-PC Barebone
ASRock DeskMini X300W Mini-PC Barebone Display Gallery Item 1
ASRock DeskMini X300W Mini-PC Barebone - 2 Display Gallery Item 2
ASRock DeskMini X300W Mini-PC Barebone - 3 Display Gallery Item 3

ASRock DeskMini X300W Mini-PC Barebone Price Worldwide

By: ASRock

Model: DESKMINI X300W

Sku: YZVI7ON9C3

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • CPU: Supports AMD AM4 Socket CPUs (Renoir, Picasso, Raven Ridge, up to 65W)
  • Memory: Supports 2 x SO-DIMM DDR4 Memory, Max. 64GB, AMD Ryzen 4000 series – 3200MHz, AMD Ryzen 3000/2000 series – 2933MHz
  • Chipset: AMD X300
  • Graphics Output: HDMI(4K 60Hz), DisplayPort, D-Sub
  • Audio: Head Phone with MIC Jack, 1 x MIC-In (RealtekALC233)
  • Front USB: USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 Type-A
  • Rear USB: USB 3.2 Gen1 Type-A, 1 x USB 2.0 Type-A,
  • Storage: 2 x SATA3 with Power connectors (RAID 0/1), Ultra M.2 (2280) PCIe Gen3 x4 SSD Slot, Ultra M.2 (2280) Slot, PCIe Gen3 x4 (Renoir, Picasso and Raven Ridge APU), PCIe Gen3 x2 (Athlon 2xxGE series APU)
  • LAN: Gigabit LAN (RealtekRTL8111H)
  • WLAN: M.2 (key E 2230) Slot for Wi-Fi + BT Module
  • Connectors: USB 2.0 Header, Front Panel Header, 4-Pin fan connectors (CPU, SYS), DC-In Jack (Supports 19V Power Adapters), Internal Speaker Header (4-Pin), Chassis Intrusion Header (2-Pin), Audio Header (4-Pin)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Small APU Form Factor

AMD AM4 Socket CPU Support Renoir, Picasso, Raven Ridge, up to 65W Support MAX Height ≦46mm CPU Cooler

Overclocking Option in BIOS

ASRock DeskMini X300 supports overclocking options. Improve system performance by tuning the core clock and release the potential of the AM4 APU.

Insane Memory Performance

ASRock DeskMini supports Dual Channel DDR4-3200+MHz (OC) memory, up to 64GB. Thanks to high speed memory and Radeon Graphics, DeskMini provides awesome 3D performance.

4X Storages

  • ASRock DeskMini supports up to 4 Storages
  • M2_1 M.2 (2280) –PCIe Gen3 x4
  • M2_2 M.2 (2280) –PCIe Gen3 x2/x4
  • 2x 2.5” SATA 6Gb SSD/HDD Tray

Mini Home Data Center

DeskMini supports RAID 0/1 function! Build mini data center at home! RAID 0 –offers superior I/O performance RAID 1 –protects critical data in mirrored data

Heatsink on MOSFET

ASRock DeskMini features with Aluminum MOSFET Heatsink provides great heat dissipation to ensure system stable in loading.

Triple Display

DeskMini supports 3 display output simultaneously. Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.

USB Type-C

A Type-C USB 3.2 Gen1 connector for fast charging and delivering up to 5Gbps data transfer rates.

DeskMini Addressable LED(Optional)

Exclusive Addressable RGB LED Strip for ASRock DeskMini Series mini PC. To create cool personalized lighting for you.

DeskMini USB Hub(Optional)

DeskMini USB Hub grants you easy connection to the DeskMini Addressable LED and USB 2.0 Cable for fantastic personalized lighting as well as the accessibility to expand extra 2x USB 2.0 ports.

Rear Audio Cable(Optional)

Connect to external audio devices such as: 2.1 channel speaker, soundbar, headphone amplifier, and so on…

VESA Mount Kit(Optional)

ASRock VESA Mount Kit of DeskMini lets you attach your DeskMini to any VESA-compatible wall mount, monitor or articulating arms to create your ideal space.

M.2 Wi-Fi Kit(Optional)

ASRock M.2 Wi-Fi Kit includes Intel AC-3168 or AX200 M.2 Wi-Fi module and two antennas; offering wireless connectivity for DeskMini series.

In the Box

  • ASRock DeskMini X300W Mini-PC Barebone
  • 120W/19V adapter
  • 2 x SATA Data with Power Cable
  • Screws Pack
  • Intel AC-3168 Wi-Fi Kit
