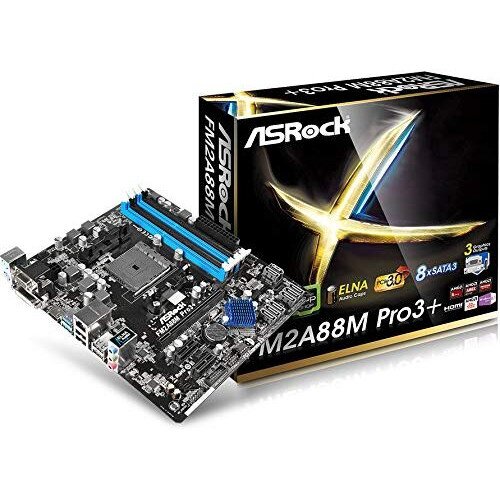

ASRock FM2A88M Pro3+ Motherboard
ASRock FM2A88M Pro3+ Motherboard Display Gallery Item 1
ASRock FM2A88M Pro3+ Motherboard - 2 Display Gallery Item 2
ASRock FM2A88M Pro3+ Motherboard - 3 Display Gallery Item 3
ASRock FM2A88M Pro3+ Motherboard - 4 Display Gallery Item 4
ASRock FM2A88M Pro3+ Motherboard - 5 Display Gallery Item 5

ASRock FM2A88M Pro3+ Motherboard - Shop Now and Save!

By: ASRock

Model: FM2A88M Pro3+

Sku: 1UTZ5LIDMT

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Support for Socket FM2+ 95W / FM2 100W processors
  • Supports Dual Channel DDR3 2400+(OC)
  • 1 PCIe 3.0 x16, 2 PCIe 2.0 x1
  • 8 SATA3, 4 USB 3.1 Gen1 (2 Front, 2 Rear), 8 USB 2.0
  • Supports ASRock Cloud, APP Shop, Full Spike Protection, X-Boost
  • 5.1 CH HD Audio (Realtek ALC662 Audio Codec), ELNA Audio Caps
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

CPU

Supports Socket FM2+ 95W / FM2 100W processors

Memory

Dual Channel DDR3 Memory Technology 4 x DDR3 DIMM Slots

Graphics

Integrated AMD Radeon R7/R5 Series Graphics in A-series APU DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.

Audio

5.1 CH HD Audio (Realtek ALC662 Audio Codec)

Storage

8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug

Connector

Chassis Intrusion Header / TPM Header / CPU Fan Connector (4-pin) / Chassis Fan Connector (4-pin) / 24 pin ATX Power Connector / 4 pin 12V Power Connector / Front Panel Audio Connector / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) / USB 3.1 Gen1 Header by AMD A88X (Bolton-D4) (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

In the Box

  • Asrock FM2A88M Pro3+ Motherboard
  • 2 x SATA Data Cables
  • Quick Installation Guide, Support CD, I/O Shield
