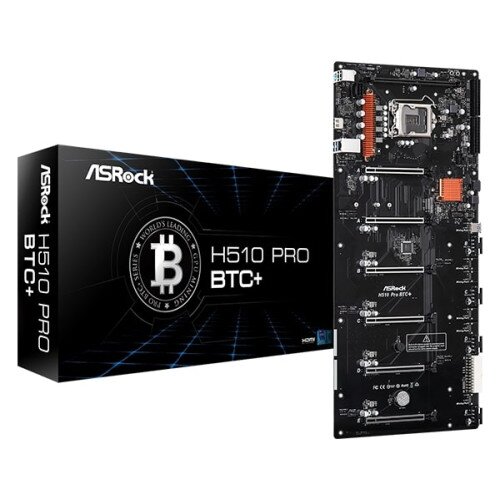

Crypto Mining
This motherboard is specifically designed for mining, the revolutionary digital crypto-currency that may be used anywhere in the world. The abundant onboard PCIe slots guarantee fast Crypto mining, while the additional power connectors provide advanced system stability while mining.
M.2 For SSD
M.2 socket supports 2260/2280/22110 SATA3 mode M.2 SSD for up to 6Gb/s.
Smart PCIe State Detection
This motherboard has included a smart way to show the status of every graphics card. While the system is booting, the Power-On, Self-Test (POST) screen will show the status of the graphics cards that were installed on the motherboard.
USB Type PCIe x1 Mining Ports
Onboard USB Type PCIe x1 Mining Ports for Setting Up Even More Graphics Cards.
PCI-E STEEL SLOTS
The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.
Riser Kit Free
Install graphics cards directly on the motherboard without using riser kits to ensure ultimate stability.
Intel LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users
Power On / Reset Button
Power On & Off system with onboard button is a must for open frame mining.
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
CPU
- Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) Digi Power design 4 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology
Memory
- 1 x DDR4 DIMM SlotSupports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory, Supports ECC UDIMM memory modules (operate in non-ECC mode), Max. capacity of system memory: 32GB, Supports Intel Extreme Memory Profile (XMP) 2.0
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support, ACPI 6.0 Compliant wake up events, SMBIOS 2.7 Support, CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIN AUX Voltage Multi-adjustment
Graphics
- 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics, Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) 60Hz with 11th Gen Inte Core Processors, Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) 30Hz with 10th Gen Intel Core Processors, Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required), Supports HDCP 2.2 with HDMI Port (HDCP 2.3 ready with 11th Gen Intel Core Processors)
LAN
- Gigabit LAN 10/100/1000 Mb/s, Giga PHY Intel I219V, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
Slots
- 6 x PCI Express 3.0 x16 Slots (PCIE1 at x16 / PCIE2~6 at x1), 1 x Mining Port (M_Port1 at x1)
Storage
- 1 x SATA3 6.0 Gb/s Connector, supports NCQ, AHCI and Hot Plug, 1 x M.2 Socket, supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module
Connector
- 1 x System Panel Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x CPU Fan Connector (4-pin), 8 x Chassis Fan Connectors (4-pin), 3 x 24 pin ATX Power Connectors, 1 x 8 pin 12V Power Connector, 4 x 4 pin PCIe Power Connectors, 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection), 1 x Power Button, 1 x Reset Button
Rear Panel I/O
- 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 2 x USB 2.0 Ports (Supports ESD Protection), 2 x USB 3.2 Gen1 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Unique Feature
- ASRock Super Alloy, Premium 50A Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB ASRock Steel Slot, ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
Hardware Monitor
- Fan Tachometer: CPU, Chassis Fans, Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans, Fan Multi-Speed Control: CPU, Chassis Fans, Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V
