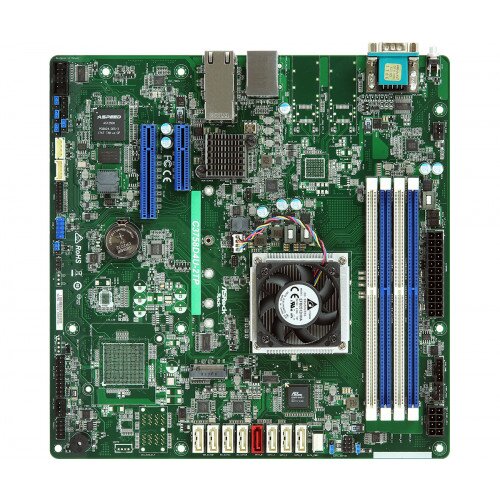

ASRock Rack C3758D4U-2TP Motherboard
ASRock Rack C3758D4U-2TP Motherboard Display Gallery Item 1
ASRock Rack C3758D4U-2TP Motherboard - 2 Display Gallery Item 2
ASRock Rack C3758D4U-2TP Motherboard - 3 Display Gallery Item 3

ASRock Rack C3758D4U-2TP Motherboard - Shop Now and Save!

By: ASRock Rack

Model: C3758D4U-2TP

Sku: N4L7X36XIA

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Intel Atom processor C3758
  • Support DDR4 2133/2400 Dual-channel Max. 128 GB ECC DIMM, UDIMM, RDIMM
  • 4 SATA3 6.0Gbps by C3758, 4 SATA3 6.0Gbps by Marvell 9172x2
  • PCI-E x8 slot + 1 x PCI-E x4 slot
  • 2 x USB 2.0 ports
  • Supports Intel X557+ CS4227 by PCH
  • Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

MB Physical Status

  • Form Factor: mATX

Processor System

  • CPU: Intel Atom C3758 Series Processor: 8core,25W
  • Socket: SOC

System Memory

  • Capacity: 4 x 288-pin DDR4 DIMM slots
  • Type: Dual Channel DDR4 memory technology

Storage

  • SATA Controller: 4 x SATA3 6.0 Gb/s (PORT SATA_3 switch with M.2)
  • Additional Storage Controller: Marvell 9172 x2 for 4 port SATA3 6.0 Gb/s

Ethernet

  • Interface: Gigabit LAN 1000/10000 Mb/s

Management

  • BMC Controller: ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 with ikvm and vMedia support

Graphics

  • Controller: ASPEED AST2500
  • VRAM: DDR4 4Gb
  • Output: Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

Internal Connector

  • COM Header: 1
  • SATA DOM: 1
  • M.2: 1(2230/2242/2260/2280/22110,PCIE(x4)/SATA)
  • Auxiliary Panel Header: 1 (include chassis intrusion, location button & LED, front LAN LED, event log LED)
  • TPM Header: 1
  • IPMB Header: 1
  • Buzzer: 1
  • Fan Header: 4 x Fans(CPU/2xFront/Rear)
  • ATX Power: 1x (24-pin)
  • DC IN: 2x (8-pin)
  • USB 2.0 Header: 2
  • PSU SMB Header: 1
  • NMI Header: 1
  • Front Panel: 1
  • BMC_SMB Header: 1
  • SGPIO Header: 1
  • ME/SPS Recovery: 1
  • Clear CMOS: 1(Short pin)

OS

  • Microsoft Windows

In the Box

  • ASRock Rack C3758D4U-2TP Motherboard
