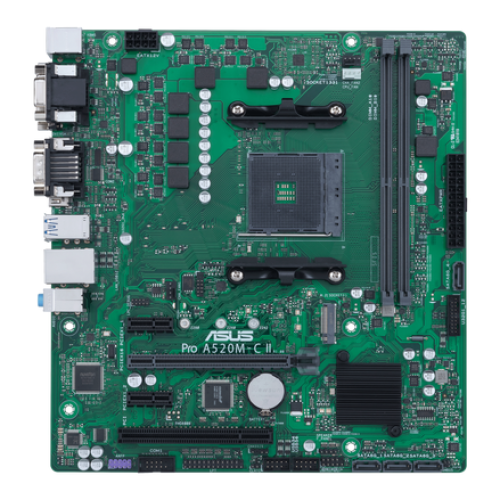

ASUS Pro A520M-C II/CSM ATX A520 Business Motherboard
ASUS Pro A520M-C II/CSM ATX A520 Business Motherboard Display Gallery Item 1
ASUS Pro A520M-C II/CSM ATX A520 Business Motherboard - 2 Display Gallery Item 2
ASUS Pro A520M-C II/CSM ATX A520 Business Motherboard - 3 Display Gallery Item 3
ASUS Pro A520M-C II/CSM ATX A520 Business Motherboard - 4 Display Gallery Item 4
ASUS Pro A520M-C II/CSM ATX A520 Business Motherboard - 5 Display Gallery Item 5
ASUS Pro A520M-C II/CSM ATX A520 Business Motherboard - 6 Display Gallery Item 6

ASUS Pro A520M-C II/CSM ATX A520 Business Motherboard Price Worldwide

By: ASUS

Model: 90MB18F0-M0AAYC

Sku: KN6VB6BQ6M

Be the first to review this product

Sign up for price alert

$103.99

Availability: In Stock In Stock

New

  • AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
  • ASUS LPC debug header for more efficient troubleshooting
  • Supports SMBUS header that connects to a DASH LAN for remote IT management
  • Innovative moisture-resistant coating to protect the motherboard from harsh environments
  • Event log for capturing and managing detailed system information
  • Commercial BIOS kit to make customization faster and more efficient
  • ASUS Control Center Express(ACCE) to make IT endpoint management easier
  • CPU: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Chipset: A520
  • Memory: DDR4, 4866(O.C.)/4600(O.C.)/4466(O.C.)/4400(O.C.)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/346(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory, Dual Channel Memory Architecture, ECC memory (ECC mode) support varies by CPU.
  • Graphics: Graphics specifications may vary between CPU types, The DVI-D port and the DisplayPort cannot work at the same time. Only the DVI-D port functions when the two ports are both connected.
  • Storage: Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  • Ethernet: Realtek 1Gb Ethernet, ASUS LANGuard.
  • Audio: Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  • Special Features: ASUS Q-Design, ASUS Q-DIMM, ASUS Q-Slot
  • Software Features: ASUS Exclusive Software, IT Management software supported, ASUS Control Center Express(ACCE)
  • BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
  • Operating System: Windows 10 64bit
Quantity:
  • Add to Wishlist
  • Add to Compare

Optimize IT endpoint management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

Internationally Certified Business Motherboard

ASUS business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.

ASUS Self-recovering BIOS

ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.

ASUS Secure Boot

ASUS business motherboard is set to check the firmware and signature of each piece of boot software.

Trusted Platform Module (TPM)

Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.

Certified NIST SP 800-147

ASUS business motherboard is certified by the national computer security standards.

ASUS Reliant

Ensures consistent performance with the finest components and rigorous reliability testing

ASUS Trouble Shooting Solution

ASUS Debug header is a 10-1 pin low pin count (LPC) header for connecting to debug cards for faster, more efficient motherboard troubleshooting. When connected to an ASUS Debug Card, administrators can view error and debugging codes on the integrated LCD display, and get better idea of initialization and recovery processes. ASUS business motherboards provide a complete troubleshooting solution, making mass production faster and more cost effective.

Remote IT Management

The onboard SMBUS header connects to a DASH LAN card for remote IT management. DASH is a desktop and mobile architecture system hardware that allows the motherboard to be managed via the network.

ASUS Commercial BIOS Kit

ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!

In the Box

  • ASUS Pro A520M-C II/CSM ATX A520 Business Motherboard
  • 2 x SATA 6Gb/s Cables
  • I/O Shield
  • M.2 SSD Screw Package
  • Support DVD
  • ACC Express Activation Key Card
  • User Manual
