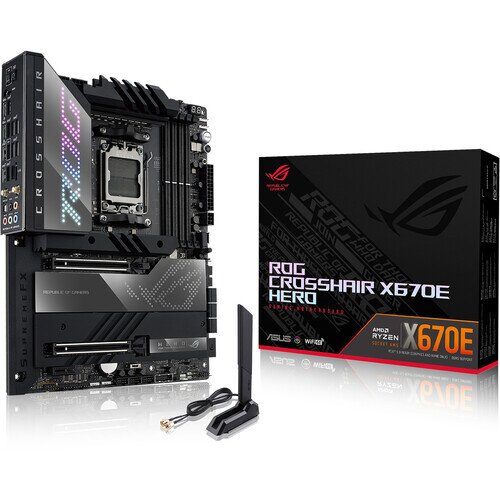

The grueling demands of the mightiest AMD Ryzen 7000 Series processors are no match for the eighteen 110A-stage power solution of the ROG Crosshair X670E Hero. Its massive headroom opens up incredible overclocking potential, bolstered by a combo attack of unique ROG technologies and champion-level DDR5 speeds.
Take Ryzen beyond the already impressive sum of its parts. Dynamic OC Switcher and Core Flex create additional frequency waypoints for single and multi-threaded workloads, allowing Ryzen to break boundaries and achieve peak performance in all games and apps.
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO), but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher lets you use them both, dynamically engaging PBO or your preferred settings based on the CPU current or temperature.
The best way to overclock Ryzen 7000 with ROG's Dynamic OC Switcher.
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.
For next-level frequency flexibility, the ROG Crosshair X670E Hero features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains.
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
Today's CPU architectures place incredible demands on motherboard power design by transitioning from deep power-saving modes, going from lower-power mode to full load in an instant. The latest ROG VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.
ASUS became the first manufacturer to implement phase-doublers with the A8N32-SLI Deluxe motherboard, back in 2005. The board's VRM was lauded for elegantly overcoming the power handling capabilities of components that were available at the time while also reducing voltage ripple. Those benefits led to phase-doublers becoming universally accepted in the industry, and they are still used for similar purposes today.
Modern CPUs pack more cores than their predecessors, and the latest instruction sets allow them to crunch computationally dense workloads at an incredible pace. In addition, they consume less power at idle and can transition between load states much more quickly. These improvements necessitate a re-evaluation of power-design priorities because phase-doublers add a propagation delay that hampers transient response.
Fortunately, the latest integrated power components can handle higher currents than the devices of yesteryear, making it possible to implement a simple circuit topology that isn't hamstrung by the processing lag of phase-doublers. That's why the ROG Crosshair X670E Hero utilizes teamed power stages to deliver higher burst current per phase, while maintaining the thermal performance of phase-doubled designs.
Each VRM component serves a specific purpose. PWM controllers and phase-doublers control the circuit, and the power stages do the heavy lifting from an electrical and thermal standpoint. The power stages feature low RDSON to reduce switching and conduction losses, helping to improve overall thermal headroom.
Comprehensive memory tuning options are the cornerstone of ROG motherboards. With the ROG Crosshair X670E Hero, you can extract all of the potential out of your DDR5 modules, regardless of if they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
For those who want to fly past stock DDR5 speeds, the ROG Crosshair X670E Hero is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.
A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.
Three dedicated heatsinks keep up to four M.2 drives in the optimum operating temperature range for consistent performance and reliability.
A high-quality thermal pad is utilized between the power stages and heatsink, helping to improve heat transfer and reduce VRM operating temperatures. For future maintenance, a spare thermal pad is included in the product box.
The topmost M.2 slot features a backplate block to ensure that an installed high-performance drive delivers peak performance, even when airflow is restricted.
A dedicated heatsink draws heat away from both chipsets to maintain optimum operating temperature.
The ROG Crosshair X670E Hero bears the same mounting hole alignment as AM4 platforms, so it is backward compatible with many existing coolers, including all AIO offerings from ASUS and ROG.
The dual-chipset design of the ROG Crosshair X670E Hero brings a wealth of bandwidth for connected devices so that you can have it all. WiFi 6E, 2.5G LAN, and dual USB4 ports all grace the rear I/O, flanked by plenty of additional ports for all your devices. On-board SupremeFX audio delivers premium, immersive sound, now using an improved ESS quad-DAC amplifier. And under the hood, up to five PCIe M.2 drives can be loaded up for blazing fast load times and transfer speeds.
Fully embracing the new standard, the ROG Crosshair X670E Hero offers abundant Gen 5 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
USB 3.2 Gen 2x2 adds an additional lane that can boost Type-C data transfers with speeds of up to 20 Gbps. The port also features Quick Charge 4+ technology that can quickly charge devices up to 60W*.
Each USB4 port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
Onboard Intel 2.5 Gbps Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-resolution video streaming.
ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide exceptional recording quality. There’s also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec, and an integrated ESS ES9218 quad DAC capable of reaching -115dB THD+N for superior front-panel output. The combined solution allows for end-to-end 32-bit 384 kHz resolution playback that conveys all the subtlety and nuances of each audio track.
Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.
The ESS ES9218 integrated quad DAC amplifier is capable of providing -114 dB total harmonic distortion (THD+N) for standard audio devices, and can ramp up to 2Vrms on supported audiophile hardware. In addition, the 121 dB dynamic range (DNR) provides an extremely low noise-floor, further accentuating dynamics and punch.
Instead of the conventional high definition audio (HDA) interface, the ALC4082 codec uses a USB interface to deliver studio-level sound reaching up to 32-bit 384 kHz audio resolution.
Unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs.
Fine-quality components that produce a warmer, natural sound with exceptional clarity and fidelity.
The ROG Crosshair X670E Hero provides a myriad of intuitive and flexible tools to optimize every aspect of your system.
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.
GameFirst VI optimizes networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms.
The AI Suite 3 dashboard contains a set of intuitive controls that boost CPU performance while maintaining system stability.
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The ROG Crosshair X670E Hero features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.
Illuminating the I/O shroud of the ROG Crosshair X670E Hero is a colorful microstructural array called Polymo Lighting. Two stylish patterns are available for builders to tinker with in Armoury Crate and sync up with the rest of their system for a brilliant display of individuality.
Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
Through the pre-loaded DTS Sound Unbound app, the ROG Crosshair X670E Hero envelops you in rich audio, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By exploiting Microsoft spatial sound technology, DTS Sound Unbound creates an audial 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep, or other sound in your virtual environment.
Build your next rig with an AMD Ryzen 7000 Series processor and ROG Crosshair X670E Hero to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen 7000 Series keeps you ahead of the game.1
You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe 5.0. AMD Ryzen 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO technology.2
