ASUS ROG MAXIMUS Z790 APEX ENCORE Gaming Motherboard Price Worldwide

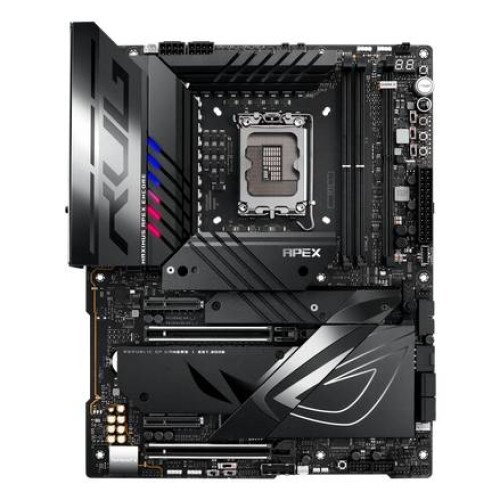

Name: ASUS ROG MAXIMUS Z790 APEX ENCORE Gaming Motherboard
Brand: ASUS
SKU: C531166RQ7
Price: 737.99 USD
Availability: InStock

By: ASUS

Model: 90MB1FX0-M0AAY0

Be the first to review this product

$737.99

Availability: In Stock In Stock

CPU: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors: Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 , Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset: Intel Z790 Chipset
Memory: 2 x DIMM, Max 96GB, DDR5 8400+(OC)/8200+(OC)/8000+ , (OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MT/s Non-ECC, Un-buffered Memory , Dual Channel Memory Architecture , Supports Intel Extreme Memory Profile (XMP) , ASUS Enhanced Memory Profile II (AEMP II) , Supports DIMM Flex , Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory , Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. , For optimal memory overclocking results, please ensure to install the bundled ROG Memory Fan Kit.
Expansion Slots: Intel CoreTM Processors (14th & 13th & 12th Gen): 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) / Intel Z790 Chipset: 2 x PCIe 4.0 x4 slot , Please check the PCIe bifurcation table , M.2_1 shares bandwidth with PCIEX16(G5)_2 and PCIEX16(G5)_1. When M.2_1 is occupied with SSD device PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only. , To ensure compatibility of the device installed
Storage: Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports Intel CoreTM Processors (14th & 13th & 12th Gen): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) , M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) / Intel Z790 Chipset: M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) , DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) , DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) , 4 x SATA 6Gb/s ports , Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 , M.2_1 shares bandwidth with PCIEX16(G5)_2 and PCIEX16(G5)_1. When M.2_1 is occupied with SSD device, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.
Ethernet: Intel 2.5Gb Ethernet , ASUS LANGuard
Wireless & Bluetooth: Intel Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be) , Supports 2.4/5/6GHz frequency band , Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth v5.4, Compatible with Windows 11 or later. , Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. , Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries., The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB: Rear USB (Total 10 ports): USB 20Gbps port (USB Type-C) , 5 x USB 10Gbps ports (5 x Type-A) , 4 x USB 5Gbps ports (4 x Type-A) / Front USB (Total 9 ports): 1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+), 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, USB Type-C power delivery output: max. 5V/3A , USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080: Impedance sense for front and rear headphone outputs, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking ,- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input ,- Supports up to 32-Bit/384 kHz playback / Audio Features: SupremeFX Shielding Technology , - Savitech SV3H712 AMP , - Gold-plated audio jacks , - Rear optical S/PDIF out port, - Premium audio capacitors , - Audio cover , The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports: USB 20Gbps port (USB Type-C) , 5 x USB 10Gbps ports (5 x Type-A) , 4 x USB 5Gbps ports (4 x Type-A), Wi-Fi Module , Intel 2.5Gb Ethernet port , 5 x Gold-plated audio jacks , Optical S/PDIF out port , BIOS FlashBack button , Clear CMOS button , PS/2 Keyboard (purple) port , PS/2 Mouse (green) port
Internal I/O Connectors: Fan and Cooling related : Fan and Cooling related , 4-pin CPU Fan header , 4-pin CPU OPT Fan header , 4-pin AIO Pump header , 2 x 4-pin Chassis Fan headers , 2 x 4-pin Full Speed Fan headers , W_PUMP+ header , 2-pin Water In header , 2-pin Water Out header , 3-pin Water Flow header , Extra Flow Fan header / Power related: 24-pin Main Power connector , 2 x 8-pin +12V Power connector , 8-pin PCIe Power connector / Storage related: 3 x M.2 slots (Key M) , DIMM.2 slot supports 2 M.2 slots (Key M) , 4 SATA 6Gb/s ports / USB :USB 20Gbps connector (supports USB Type-C) , 2 USB 5Gbps headers support additional 4 USB 5Gbps ports , 2 USB 2.0 headers support additional 4 USB 2.0 ports / Miscellaneous: 80 Light Bar jumper , 3 Addressable Gen 2 headers , Alternative PCIe Mode Switch , Aura RGB header , 2 BCLK button , BIOS Switch button , FlexKey button , Front Panel Audio header (F_AUDIO) , LN2 Mode jumper , Osc sence header , Pause switch 12 ProbeIt Measurement Points , ReTry button , 2 RSVD switches , RSVD header , Safe Boot button , Slow Mode switch , Start button , 10-1 pin System Panel header , Thermal Sensor header , Thunderbolt (USB4) header , V_Latch switch
Extreme OC Kit: - FlexKey button , LN2 Mode , ProbeIt , ReTry button , Safe boot button , Start button , Slow Mode
Extreme Engine Digi+: SMD Capacitor , MicroFine Alloy Choke
ASUS Q-Design : M.2 Q-Latch , PCIe Slot Q-Release , Q-Antenna , Q-Code , Q-Connector , Q-DIMM , Q-LED (CPU [red], DRAM [yellow], VGA [white] , Boot Device [yellow green]) , Q-Slot
ASUS Thermal Solution: M.2 heatsink backplate , M.2 heatsink , VRM heatsink design
ASUS EZ DIY: BIOS FlashBack button , - Clear CMOS button , - CPU Socket lever protector , - ProCool II , - Pre-mounted I/O shield , - SafeSlot , - SafeDIMM
Aura Sync: - Aura RGB header , - Addressable Gen 2 headers
Dual BIOS: Front Panel USB 20Gbps with Quick Charge 4+ Support , - Support: up to 60W fast charging and USB Wattage Watcher , - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A , - Compatible with PD3.0 and PPS , To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
ROG Exclusive Software: - ROG CPU-Z , - DTS Sound Unbound , - Internet Security (1-year full version)
ASUS Exclusive Software: Armoury Crate , - AIDA64 Extreme (1 year full version) , - Aura Creator , - Aura Sync , - Fan Xpert 4 (with AI Cooling II) , - GameFirst , - Power Saving , - Sonic Studio , - Two-Way AI Noise Cancelation AI Suite 3 , - Easy Optimization with AI Overclocking , - TPU , - DIGI+ Power Control , - Turbo app , - PC Cleaner , MyAsus , USB Wattage Watcher , Intel Unison , WinRAR (40 Days Free Trial) , UEFI BIOS , AI Overclocking Guide , ASUS EZ DIY , - ASUS CrashFree BIOS 3 , - ASUS EZ Flash 3 , - ASUS UEFI BIOS EZ Mode , - ASUS , MyHotkey , MemTest86
BIOS: 2 x 256 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE
Operating System: Windows 11, Windows 10 64-bit
Form Factor: ATX Form Factor

Quantity:

Add to Wishlist

Add to Compare

Intel LGA 1700 Socket:

Ready for Intel Core 14th & 13th Gen processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors

Upscaled Power Solution

24+0+2 power stages with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors

Optimized VRM Thermals:

Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with a heatpipe

Latest M.2 Support:

Onboard PCIe 5.0 M.2 slot, two onboard PCIe 4.0 M.2 slots, and two PCIe 4.0 M.2 slots on an ROG DIMM.2 card, all with substantial cooling solutions

Abundant Connectivity:

USB 20Gbps Type-C port, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, five additional USB 10Gbps ports, two PCIe 5.0 x16 SafeSlots

High-Performance Networking:

On-board Intel Wi-Fi 7 (802.11be) and Intel 2.5 Gb Ethernet with ASUS LANGuard

Intelligent Control:

ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, Two-Way AI Noise Cancelation, AEMP II, and DIMM Flex to simplify setup and improve performance

Immersive Audio:

ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio

Unmatched Personalization:

ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers

DIY-Friendly Design:

PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, pre-mounted I/O shield, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack button, and Clear CMOS button

Renowned Software:

Bundled 9-month Intel Unison subscription, bundled 1-year AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

In the Box

ASUS ROG MAXIMUS Z790 APEX ENCORE Gaming Motherboard
Quick start guide

SKU	C531166RQ7
Brand	ASUS
Model	90MB1FX0-M0AAY0
Style	No
Condition	New
Socket	No
Chipset	No
Weight (lbs.)	3.6400
Manufacturer's Warranty	3 Year Limited Warranty
