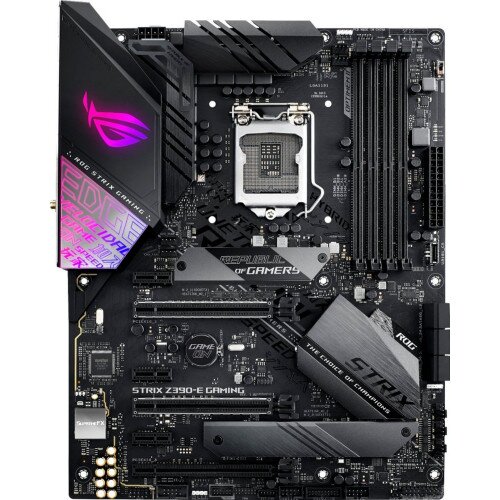

ASUS ROG Strix Z390-E Gaming Motherboard
ASUS ROG Strix Z390-E Gaming Motherboard Display Gallery Item 1
ASUS ROG Strix Z390-E Gaming Motherboard - 2 Display Gallery Item 2
ASUS ROG Strix Z390-E Gaming Motherboard - 3 Display Gallery Item 3
ASUS ROG Strix Z390-E Gaming Motherboard - 4 Display Gallery Item 4
ASUS ROG Strix Z390-E Gaming Motherboard - 5 Display Gallery Item 5
ASUS ROG Strix Z390-E Gaming Motherboard - 6 Display Gallery Item 6
ASUS ROG Strix Z390-E Gaming Motherboard - 7 Display Gallery Item 7

ASUS ROG Strix Z390-E Gaming Motherboard - Shop Now and Save!

By: ASUS

Model: ROG Strix Z390-E Gaming

Sku: 430GUIAKPE

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • CPU: Intel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors, Supports Intel 14 nm CPU, Supports Intel Turbo Boost Technology 2.0
  • Chipset: Intel Z390
  • Bluetooth: Bluetooth 5.0
  • BIOS: 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1
  • Manageability: WOL , PXE
  • Operating System: Windows 10 64-bit
  • Form Factor: ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Expansion Slots: 2 x PCIe 3.0/2.0 x16 (x16 or dual x8), 1 x PCIe 3.0/2.0 x16 (max at x4 mode), 3 x PCIe 3.0/2.0 x1
  • Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology, Supports AMD 3-Way CrossFireX Technology
  • Memory: 4 x DIMM, Max. 64GB, DDR4, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel Extreme Memory Profile (XMP)
  • Graphic: Integrated Graphics Processor- Intel HD Graphics support, Multi-VGA output support : HDMI/DisplayPort ports, Supports HDMI with max. resolution 4096 x 2160 30 Hz, Supports DisplayPort with max. resolution 4096 x 2304 60 Hz, Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
  • Storage: Intel Z390 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode), 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10, Intel Optane Memory Ready
  • LAN: Intel I219V, Anti-surge LANGuard, ROG GameFirst Technology
  • Wireless Data Network: Intel Wireless-AC 9560, Wi-Fi 802.11 a/b/g/n/ac, Supports dual band frequency 2.4/5 GHz, Supports MU-MIMO
  • Audio Feature: SupremeFX Shielding Technology, Optical S/PDIF out port(s) at back panel, Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals, Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity, Sonic Radar III, Sonic Studio III + Sonic Studio Link
  • ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A: Dual OP Amplifiers, Impedance sense for front and rear headphone outputs, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, High quality 120 dB SNR stereo playback output and 113 dB SNR recording input, SupremeFX Shielding Technology, Supports up to 32-Bit/192kHz playback/li>
  • USB Ports: 1 x USB 3.1 Gen 2 front panel connector port(s), 4 x USB 3.1 Gen 2 port(s) (3 x Type-A+1 x USB Type-C), 4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board), 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
  • Back I/O Ports: 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 4 x USB 3.1 Gen 2 (3 x Type-A+1 x USB Type-C), 2 x USB 3.1 Gen 1, 2 x USB 2.0, 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x ASUS Wi-Fi Module
  • Internal I/O Ports: 1 x Aura Addressable Strip Header(s), 1 x AAFP connector, 2 x Aura RGB Strip Header(s), 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 6 x SATA 6Gb/s connector(s), 1 x M.2_FAN connector, 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 2 x Chassis Fan connector(s), 1 x W_PUMP+ connector, 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x System panel(s) (Chassis intrusion header is inbuilt), 1 x 5-pin EXT_FAN(Extension Fan) connector, 1 x MemOK! II switch(es), 1 x Thermal sensor connector(s), 1 x CPU OV, 1 x Clear CMOS jumper(s), 1 x Node Connector(s), 1 x 14-1 pin TPM connector, 1 x COM port header, 1 x AIO PUMP Header, 1 x USB 3.1 Gen 2 front panel connector
  • ROG Exclusive Software: RAMCache III, CPU-Z, GameFirst V, Sonic Studio III + Sonic Studio Link, Sonic Radar III
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Intel Z390 LGA 1151 ATX gaming motherboard with Aura Sync RGB, 802.11ac Wi-Fi, DDR4 4266z+, dual M.2 with heatsinks, SATA 6Gbps, HDMI, and USB 3.1 Gen 2

  • LGA1151 socket for 9th/ 8th Gen Intel Core desktop processors
  • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
  • Comprehensive cooling: Dual onboard M.2 heatsink, water-pump header, fan-extension header and a MOS fan with bracket
  • 5-Way Optimization: Automated system-wide tuning, providing AI overclocking and cooling profiles tailor-made for your rig
  • Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C connectors
  • Gaming networking: Intel Gigabit Ethernet, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, LANGuard and GameFirst
  • Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action
  • Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance

ROG Strix Z390-E Gaming amps the power delivery and stacks a comprehensive set of cooling options to tame Intel's latest CPUs. Together with a wealth of enhancements, including one-click optimization, the latest connectivity and futuristic styling with onboard illumination, ROG Strix Z390-E Gaming makes a formidable foundation for ATX gaming builds that go above and beyond.

SOLID HARDWARE SPECS FOR GAMING AND MORE

With comprehensive cooling options and upgraded power delivery to fuel CPUs with more cores, plus support for faster memory and storage, ROG Strix Z390-E Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.

DESIGN, CUSTOMIZATION, AND SETUP

A host of design touches, including a unique cyber-text pattern, plus customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix Z390-E Gaming wonderfully easy.

TUNE YOUR RIG THE WAY YOU WANT

The ROG Strix Z390-E Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.

THE POWER OF INTEL

Intel Z390 chipset

The Intel Z390 is a single-chipset design that supports Socket 1151 for 9th Gen and 8th Gen Intel Core, Pentium Gold and Celeron processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the chipset provides a maximum of six USB 3.1 Gen 2 ports, four USB 3.1 Gen 1 ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z390 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.

Ready for Socket 1151 for 9th / 8th Gen Intel Core, Pentium Gold and Celeron processors

This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel Core, Pentium Gold and Celeron processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.

In the Box

  • ASUS ROG Strix Z390-E Gaming Motherboard
  • 4 x SATA 6Gb/s cable(s)
  • M.2 Screw Package
  • Supporting DVD
  • CABLE TIE BLACK
  • SLI HB BRIDGE(2-WAY-M)
  • ROG Strix stickers
  • Assistant Fans(40mm)
  • Screws for Assistant Fan(s)
  • ROG Door Hanger(s)
  • Extension Cable for RGB strips (80 cm)
  • Extension cable for Addressable LED
  • Thermistor cable(s)
  • ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
