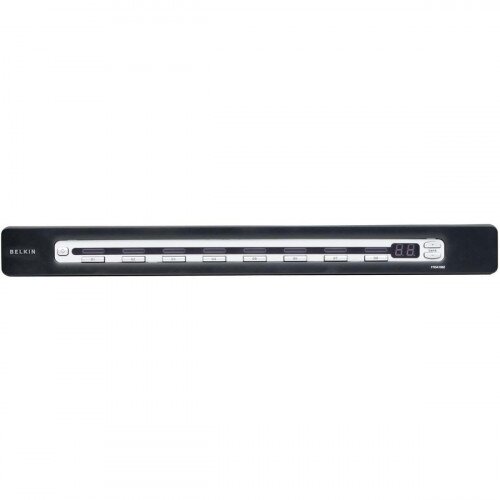

The OmniView PRO3 USB and PS/2 KVM Switch provides easy and dependable server control with extraordinary performance. The Switch enables network administrators to monitor and control up to four, eight, or 16 USB- and PS/2-platform servers from a single console. The PRO Series KVM Switches are the industry's most popular for small to medium server rooms, branch locations, and test and development labs. Designed to grow along with your server network, the Switch can be daisy-chained together using dedicated daisy-chain ports with other OmniView PRO Series or SMB KVM Switches to support up to 256 servers. Belkin PRO3 KVM Cables are required to connect your servers and computers.
General
- Device Type: KVM switch - 8 ports - stackable
- Enclosure Type: Desktop
- Ports: 8 x KVM port(s)
- Keyboard / Mouse Interface: PS/2
- Max Resolution: 1920 x 1440 75 Hz
- Features: On-Screen Display, firmware upgradable
- Status Indicators: Port status
Expansion / Connectivity
Interfaces: Keyboard / video / mouse (KVM) : 8 x 50 pin Centronics, Network stack device : 2 x 25 pin D-Sub (DB-25), 1 x RJ-11 - management, Keyboard : 1 x generic - 6 pin mini-DIN (PS/2 style), Mouse : 1 x generic - 6 pin mini-DIN (PS/2 style), Keyboard : 1 x 4 pin USB Type A, Mouse : 1 x 4 pin USB Type A, Display / video : 1 x VGA - 15 pin HD D-Sub (HD-15)
Power
- Power Device: Power adapter - external
Software / System Requirements
- OS Required: SunSoft Solaris 8, Novell NetWare 5.x, Microsoft DOS 5.x or later, Apple MacOS X, Microsoft Windows Server 2003, Red Hat Linux 8.x, Microsoft Windows 95/98/ME/NT/2000/XP, Microsoft Windows Vista
Environmental Parameters
- Min Operating Temperature: 32 °F
- Max Operating Temperature: 104 °F
- Humidity Range Operating: 0 - 80%
Compatibility Information
Designed For: Belkin OmniView Dual-Rail LCD Console, Titan LCD Rack Console with PRO3
Dual Port VGA & PS2 Cable(each cable supports two computers)
- OmniView Dual-Port Cable; VGA & PS/2; 6 FT (F1D9400-06)
- OmniView Dual-Port Cable; VGA & PS/2; 10 FT (F1D9400-10)
- OmniView Dual-Port Cable; VGA & PS/2; 15 FT (F1D9400-15)
- OmniView Dual-Port Cable; VGA & PS/2; 25 FT (F1D9400-25)
Dual Port VGA & USB Cable(each cable supports two computers)
- OmniView Dual-Port Cable; VGA & USB; 6 FT (F1D9401-06)
- OmniView Dual-Port Cable: VGA & USB; 12 FT (F1D9401-12)
Daisy Chain Cable (used to connect multiple Pro3 KVMsand/or Rack Consoles together)
- Daisy-Chain Cable; 2 FT (F1D108-CBL)
- Daisy-Chain Cable; 6 FT (F1D108-CBL-06)
- Daisy-Chain Cable; 10 FT (F1D108-CBL-10)
- Daisy-Chain Cable; 15 FT (F1D108-CBL-15)
