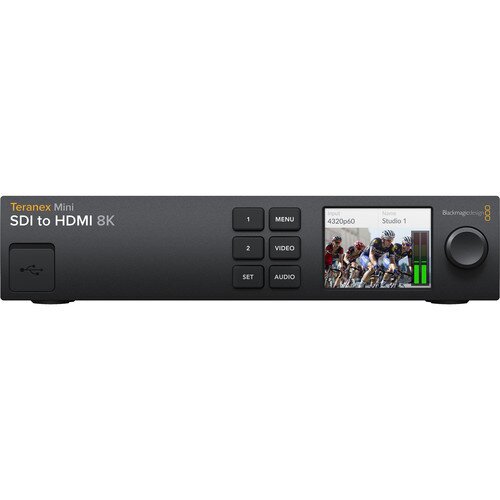

Discover Blackmagic Design Teranex Mini SDI to HDMI 8K Converter

• Operating Temperature: 0° to 40°C (32° to 104°F)
• Power Supply: 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
• Power Consumption: 25 Watts
• Operational Voltage Range: 100 - 240V AC
• Settings Control: 6 buttons and spin knob for menu and settings control, 2.2 inch color LCD display.
• Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 10, 64-bit.
• Scopes: Waveform, RGB/YUV Parade, Vector, Histogram
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24‑bit.
• SDI Color Precision: 4:2:2 and 4:4:4
• SDI Color Space: YUV and RGB.
• SD Video Standards: None
• Embedded Audio Support: 16 channels of embedded audio on all SDI loop outputs and 8 channels on the HDMI outputs.
• SDI Video Inputs: 4 x 12G-SDI HD/2K/4K/8K auto switching, Dual and quad link 12G‑SDI for 8K only.
• Updates and Configuration: USB-C or Ethernet.
• Reclocking: Yes
• SDI Video Outputs: 4 x 12G-SDI loop output.
• Analog Audio Outputs: 2 channels analog audio via RCA connectors.
• HDMI Video Outputs: 4 x HDMI 2.0 type A connector with support for HD, UHD and 4K in single link or 4320p60 in Quad Link.
