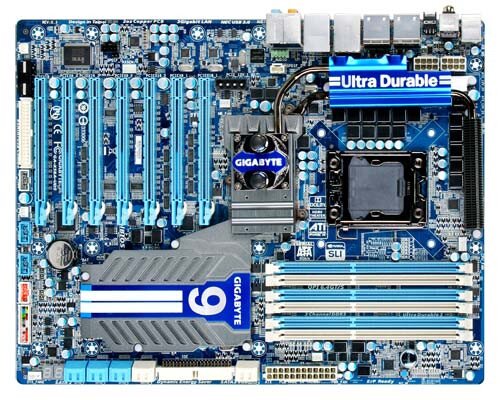

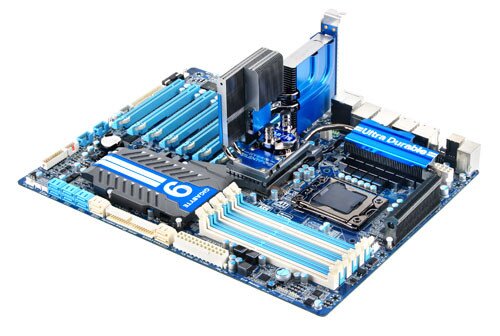

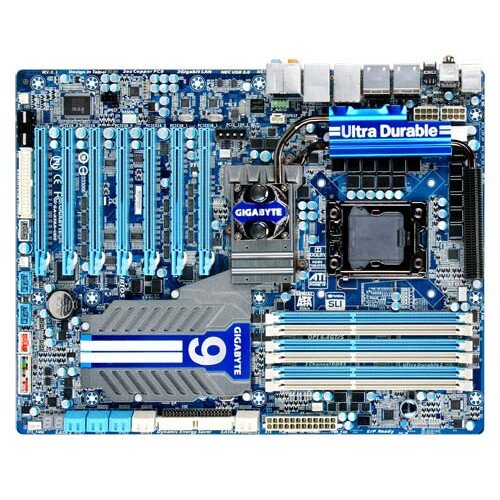

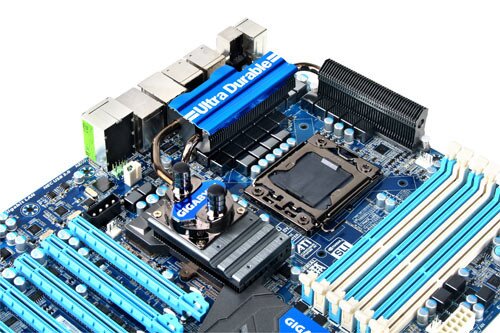

Based on Intel's highest end X58 chipset, the GIGABYTE GA-X58A-UD9 offers a wide range of premium features tailor-made for PC enthusiasts who believe more is never enough. The latest monster performance GA-X58A-UD9 motherboard, featuring a revolutionary new 24 phase Unlocked Power design, 4-way graphics support including Nvidia SLI and ATI CrossFireX, as well as a host of unique GIGABYTE features including 333 Onboard Acceleration and On/Off Charge. GIGABYTE GA-X58A-UD9 motherboards also leverage the success of GIGABYTE's uniquely developed technologies including the GIGABYTE Ultra Durable 3 design, which features 2x the amount of copper of a traditional PCB design, as well as the innovative Smart6 PC management tools, On/Off Charge for quick anytime iphone charging, Dynamic Energy Saver 2 power saving utilities, and DualBIOS technologies.
The GA-X58A-UD9 was designed specifically to take advantage of the raw power of the next generation Intel Core i7 processors and the Intel X58 Express chipset, whose new evolution in computing architecture is able to deliver an amazing performance break through from past processor generations. Replacing the Front Side Bus is the new Quick Path Interconnect, or QPI, whose 25.6 GB/sec transfer rates (double the bandwidth of the 1600MHz FSB) eliminates the communication bottleneck between the processor and chipset.

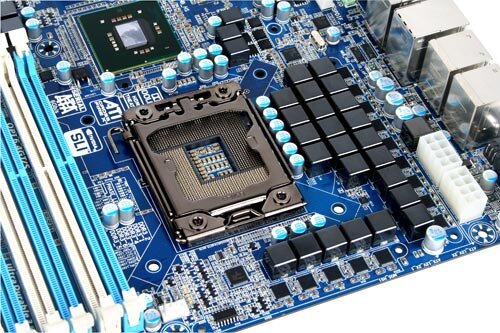

GIGABYTE Unlocked Power, with completely reengineered 24 phase power design able to deliver the maximum CPU power, the highest amount of power of any current desktop motherboard. GIGABYTE engineers have completely redesigned the traditional PWM power design of the motherboard to deliver first class system performance and stability.
The industry's first Dual Power Switching design for delivering better durability and longer component lifespan. When Dual Power Switching is activated, 2 sets of 12 power phases operate in tandem, automatically turning on one set of 12 phases and powering down the other 12, allowing the non active set to rest. Dual Power Switching ensures that each set of phases share the power workload, effectively doubling the lifespan of the phases.
When CPU loading requires more than 12 phases to be active, the full 24 power phases are unlocked, allowing for maximum power delivery. For overclockers and power users, this means during maximum loading, all 24 power phases can be activated; ensuring users have the maximum power delivery and maximum durability and power efficiency.
The GIGABYTE GA-X58A-UD9 delivers the industry's most scalable graphics platform, with support for both 4-way ATI CrossfireX and Nvidia SLIProviding 4 PCI Express 2.0 x16 connectivity, the GIGABYTE GA-X58A-UD9 delivers ultra smooth 3D rendering, blazing-fast frame rates and enhanced graphics capabilities for users wanting to get the highest level of graphics performance from their system.
GIGABYTE's entire line of X58-based motherboards are ready to support the new generation of Intel 32nm 6-core processors, delivering the very best platform for multitasking, multimedia and high performance gaming.
GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking.
GIGABYTE Dynamic Energy Saver(TM) 2 incorporates a host of intelligent features that, at the click of a button, utilize a proprietary hardware and software design to considerably enhance PC system energy efficiency, reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans.
GIGABYTE Cloud OC is a free overclocking application that facilitates PC overclocking through any web browsing capable device such as a smart phone, iPad, iPhone, Netbooks or notebook PC. Being browser based, it connects via wireless Internet, Bluetooth or through an Ethernet cable, and its many functions are categorized into three tabs: Tuner, System Info and Control.
