Kingston 24GB Kit (3x8GB) - DDR3L 1600MHz Server Memory
Kingston 24GB Kit (3x8GB) - DDR3L 1600MHz Server Memory Display Gallery Item 1

Discover Kingston 24GB Kit (3x8GB) - DDR3L 1600MHz Server Memory

By: Kingston

Model: KVR16LE11K3/24

Sku: AOMB0T7ZLG

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~1.575V) Power Supply
  • VDDQ=1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
  • 800MHz fCK for 1600Mb/sec/pin
  • 8 independent internal bank
  • Programmable CAS Latency: 11, 10, 9, 8, 7, 6
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • 8-bit pre-fetch
  • Burst Length: 8 (Interleave without any limit, sequential withstarting address “000” only), 4 with tCCD=4 which does notallow seamless read or write [either on the fly using A12 orMRS]
  • Bi-directional Differential Data Strobe
  • Thermal Sensor Grade B
  • Internal(self) calibration : Internal self calibration through ZQpin (RZQ : 240 ohm ± 1%)
  • On Die Termination using ODT pin
  • Average Refresh Period 7.8us at lower than TCASE 85°C,3.9us at 85°C < TCASE < 95°C
  • Asynchronous Reset
  • PCB: Height 1.18” (30mm), double sided component
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

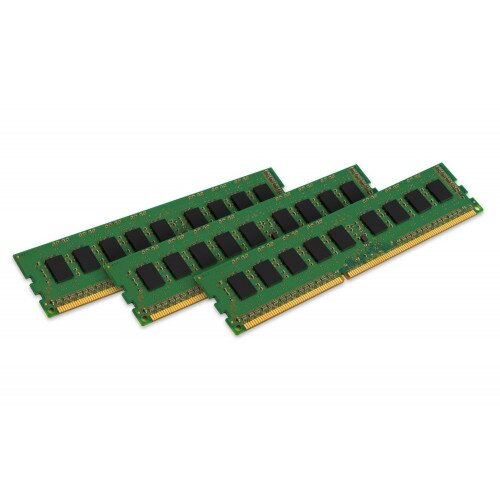

ValueRAM's KVR16LE11K3/24 is a kit of three 1G x 72-bit(8GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 2Rx8,ECC, low voltage, memory modules, based on eighteen512M x 8-bit FBGA components per module. Total kit capacityis 24GB. The SPDs are programmed to JEDEC standardlatency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. Each240-pin DIMM uses gold contact fingers.

In the Box

  • Kingston 24GB Kit (3x8GB) - DDR3L 1600MHz Server Memory
