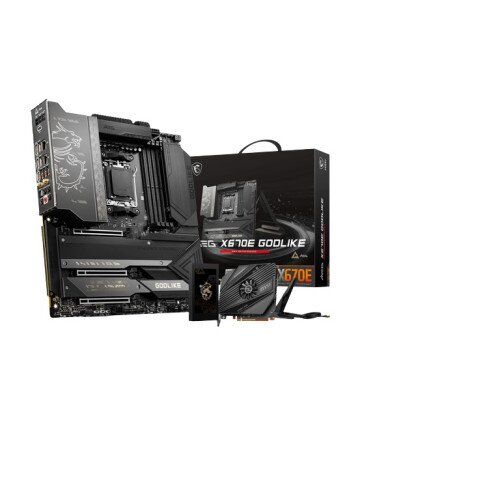

MSI MEG X670E GODLIKE Motherboard - Shop Now and Save!

By: MSI

Model: MEG X670E GODLIKE

Sku: PV5Q3O3HM3

$1,353.99

Availability: In Stock In Stock

New

  • CHIPSET: AMD X670
  • CPU SUPPORT: Supports AMD Ryzen 7000 Series Desktop Processors, Socket AM5
  • MEMORY: 4x DDR5, Maximum Memory Capacity 128GB
  • EXPANSION SLOT: 3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 PCIe 5.0 supports up to x16 (From CPU), PCI_E2 PCIe 5.0 supports up to x8 (From CPU), PCI_E3 PCIe 5.0 supports up to x4 (From CPU)
  • MULTI-GPU: Supports NVIDIA SLI Technology, Supports AMD MULTI-GPU
  • STORAGE: 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 8x SATA 6G port
  • RAID: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices, SATA_A1_A2, SATA_B1_B2 and SATA_B3_B4 do not support RAID function.
  • LAN: Marvell AQC113-B1-C 10Gbps LAN, Intel I225V 2.5Gbps LAN
  • WIRELESS / BLUETOOTH: AMD Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands, Supports 802.11 a/ b/ g/ n/ ac/ ax,/ Supports Bluetooth 5.2/ Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
  • USB: 4x USB 2.0 ports (Front), 4x USB 3.2 Gen1 Type A ports (Front), 7x USB 3.2 Gen2 Type A ports (Rear), USB 3.2 Gen2 Type C ports (Front), 2x USB 3.2 Gen2x2 Type C ports (Rear), USB 3.2 Gen2x2 Type C ports (Front)
  • AUDIO: Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA, 7.1-Channel High Definition Audio, Supports S/PDIF output, Supports up to 32-Bit/384 kHz playback on front panel
  • INTERNAL I/O: Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), Power Connector(PCIE_PWR 4pin or 6 pin), Front Type-C Quick Charge Connector(PD_PWR1), CPU Fan, 2x Pump Fan, 6x System Fan, 2x Front Panel (JFP), Chassis Intrusion (JCI), Water Flow connector, Front Audio (JAUD), 2x Thermal Sensor connectors(T_SEN), Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), RGB LED connector(JRGB), 4x USB 2.0 ports, 4x USB 3.2 Gen1 Type A ports, USB 3.2 Gen2 Type C ports, USB 3.2 Gen 2x2 Type C ports, V-check point
  • LED FEATURE: EZ LED Control switch, 4x EZ Debug LED, 2-Digit Debug Code LED
  • BACK PANEL PORTS: Clear CMOS Button, Flash BIOS Button, 2.5G LAN, 10G Super LAN, USB 3.2 Gen 2 10Gbps (Type-A), Wi-Fi / Bluetooth, HD Audio Connectors, Smart Button, USB 3.2 Gen 2x2 20Gbps (Type-C), USB 3.2 Gen 2 10Gbps (Type-A), USB 3.2 Gen 2 10Gbps (Type-A), USB 3.2 Gen 2x2 20Gbps (Type-C), Optical S/PDIF-Out
  • OPERATING SYSTEM: Support for Windows 11 64-bit, Windows 10 64-bit
Quantity:
  • Add to Wishlist
  • Add to Compare

The MEG X670E GODLIKE is designed with a black and heavy heatsink which comes with dark mirror and time carving design in pale gold illuminating that symbolizes the timeless form and function as well as representing perfection in its purest form. Featuring the latest technology, high-speed transmission, ultra-performance, and Industry's first M-Vision Dashboard, the MEG X670E GODLIKE is developed to unleash the extreme gaming potential of the AMD X670 chipset and is ready to rule the tournament once again.

LATEST DDR5 MEMORY

Take a huge step of DDR performance upgrade with the latest DDR5 memory. Combining the dedicated SMT welding process and with MSI memory boost technology, the MEG X670E GODLIKE is ready to deliver world-class memory performance.

LIGHTNING GEN 5

The latest and the fastest PCI-e data transfer solution can reach 128GB/s of unidirectional transfer bandwidth of a x16 interface that has doubled compared to its previous generation. Optimized by Steel Armor design and server grade PCB, you can enjoy next-gen devices without any compromise.

EXTREME THERMAL & POWER SOLUTION

The heat dissipation module is one of the biggest contributors to keeping GODLIKE efficient and cool. The flagship and exclusive cooling solution make it unnecessary for gamers to worry about temperature problems.

The premium power solution, superior layout design, advanced PCB material and enhanced tuning parameter provide the extreme performance and long-lasting system stability without any compromise.

Onboard quadruple M.2 connectors for the maximum storage performance with one Lightning Gen 5 solution.

Double-sided M.2 Shield Frozr keeps M.2 SSDs safe while preventing throttling, making them run faster.

The screwless M.2 patented design allows you to set your M.2 and Shield Frozr without the annoying screws, provides the easiest way for M.2 installation.

The patented magnetic M.2 Shield Frozr design enables true “wire-less” RGB function, enhances the installation process and maximizes the storage performance.

Exclusive PCI-Express card offers two extra PCI-e 5.0 M.2 slots with smart fan cooling solution to increase your storage capacity at maximum speed, features auto detect function for the M.2 access and the M.2 temperature for easy checking.

Maximum 6x M.2 connectors unleash the extreme storage performance.

LATEST CONNECTIVITY

Onboard 10G Super LAN and 2.5G LAN deliver the best online experience without lag.

The latest Wi-Fi 6E solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

M-VISION DASHBOARD

The Touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.

  • Supports AMD Ryzen 7000 Series Desktop Processors
  • Supports DDR5 Memory
  • M-Vision Dashboard: The Touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
  • Extreme Power Design: 24+2+1 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
  • Premium Thermal Module: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
  • Maximum 6 x M.2 Connectors: Onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and the latest Wi-Fi 6E solution deliver the best online experience without lag.
  • Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2x2 20G with 60W USB Power Delivery.
  • DIY Friendly Design: Patented Magnetic M.2 Shield Frozr, Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
  • 10 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
  • Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.

In the Box

  • MSI MEG X670E GODLIKE Motherboard
