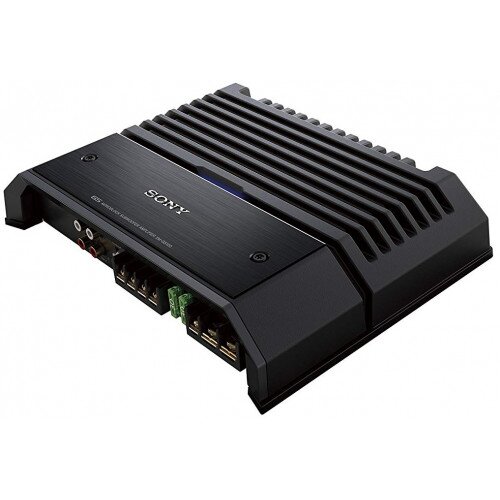

Sony Class D Monaural Power Amplifier
Sony Class D Monaural Power Amplifier Display Gallery Item 1
Sony Class D Monaural Power Amplifier - 2 Display Gallery Item 2
Sony Class D Monaural Power Amplifier - 3 Display Gallery Item 3
Sony Class D Monaural Power Amplifier - 4 Display Gallery Item 4
Sony Class D Monaural Power Amplifier - 5 Display Gallery Item 5

Sony Class D Monaural Power Amplifier Price Worldwide

By: Sony

Model: XM-GS100

Sku: AR2RRD4HM9

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Amplifier: CHANNEL CONFIGURATION: Mono, LOW PASS FILTER: 50-300 Hz, LOW-PASS FILTER SLOPE: 12 dB/oct
  • Rated Output Power, RMS 20 - 20000 Hz: MAX. CHANNEL CONFIGURATION AT 4 OHM (W) / THD (%): 330 W x 1 / 1.0% (20-200 Hz), MAX. CHANNEL CONFIGURATION AT 2 OHM (W) / THD (%): 600 W x 1/1.0% (50 Hz)
  • Maximum Output Power (1 kHz): MAX. CHANNEL POWER CONFIGURATION AT 4 OHM: 600 W x 1, MAX. CHANNEL POWER CONFIGURATION AT 2 OHMS: 1100 W x 1
  • FREQUENCY RESPONSE: 10-300 Hz
  • TOLERANCE: +0.5/-3 dB
  • SIGNAL TO NOISE RATIO: 100 dB
  • TOTAL HARMONIC DISTORTION AT 1 KHZ (%): 0.1% (50 Hz)
  • CEA POWER OUTPUT: 330 W x 1
  • CEA SN RATIO: 65 dBA
  • SPEAKER LEVEL INPUT: YES
  • LINE IN: INPUT SENSITIVITY: 0.3–6
  • LOAD CAPABILITY (OHM): NO/YES
  • GOLD PLATED CONNECTORS: YES
  • MOSFET: YES
  • CURRENT DRAIN (A) - RATED OUTPUT POWER AT 4 OHM: 30A
  • SUBSONIC HIGH PASS FILTER: YES
  • LINE OUT: YES (Through)
  • BASS BOOST: FREQUENCY (0 - 10 DB): 40 Hz
  • 330 W high power output
  • 600 W (at 4 ohms), 1100 W x 1 (at 2 ohms)
  • Active Thermal Control for stable playback
  • Dynamic Distortion Suppressor for clear sound
  • Low pass filter
Stock Request Notify When Available

The XM-GS100 amplifier’s compact framework and single-sided connections provide multiple mounting options while maximizing your audio output. Integrated Active Thermal Control regulates the unit’s operating temperature for stable, long-term playback at high volume, while Dynamic Distortion Suppressor enables clear bass reproduction.

In the Box

  • Sony Class D Monaural Power Amplifier
  • Instruction Manual
