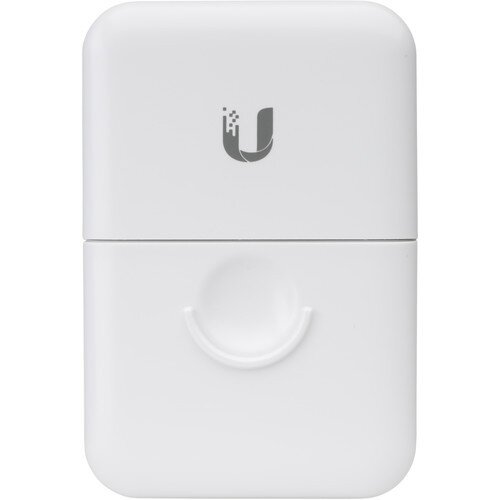

Ubiquiti Ethernet Surge Protector
Ubiquiti Ethernet Surge Protector Display Gallery Item 1
Ubiquiti Ethernet Surge Protector - 2 Display Gallery Item 2
Ubiquiti Ethernet Surge Protector - 3 Display Gallery Item 3
Ubiquiti Ethernet Surge Protector - 4 Display Gallery Item 4
Ubiquiti Ethernet Surge Protector - 5 Display Gallery Item 5
Ubiquiti Ethernet Surge Protector - 6 Display Gallery Item 6
Ubiquiti Ethernet Surge Protector - 7 Display Gallery Item 7
Ubiquiti Ethernet Surge Protector - 8 Display Gallery Item 8
Ubiquiti Ethernet Surge Protector - 9 Display Gallery Item 9

Ubiquiti Ethernet Surge Protector - Shop Now and Save!

By: Ubiquiti

Model: ETH-SP-G2

Sku: P5QA5XLS8B

Be the first to review this product

Sign up for price alert

$37.99

Availability: In Stock In Stock

New

  • Low-Cost Protection and Fast Installation
  • Protects Outdoor Ethernet Devices
  • Compatible with 10/100/1000 Mbps Networks
  • Interface Connections: (2) RJ45 Female Connectors
  • ESD/EMP Protection: Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/µs
  • DC Spark-Over Voltage: 90V 100V/s
  • Maximum Impulse Spark-Over Voltage: 700V 1kV/µs
  • Discharge Current: 10kA+
  • Maximum Insulation Resistance: 1G ohm 50V
  • Maximum Capacitance: 1.0 pF 1 MHz
  • Data Line Protection: RJ45 10/100/1000 Ethernet
  • Shock and Vibration Certification: ETSI300-019-1.4 Standard
  • Operating Temperature: -30 to 65° C (-22 to 149° F)
  • Operating Humidity: 10 to 90% Noncondensing
Quantity:
  • Add to Wishlist
  • Add to Compare

ESD Protection for Outdoor High-Speed Networks

Introducing the next generation Ethernet Surge Protector, model ETH-SP-G2, from Ubiquiti. The ETH-SP-G2 is a cost-effective solution for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti airMAX devices already have robust ESD protection built in, adding the ETH-SP-G2 to the installation provides an additional layer of protection to the network.

The ETH-SP-G2 is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.

In the Box

  • Ubiquiti Ethernet Surge Protector
