Discover Ubiquiti UniFi AC Mesh 802.11AC Indoor/Outdoor Wi-Fi Access Points with Plug & Play Mesh Technology

By: Ubiquiti

Model: UAP-AC-M-US

Sku: 9PBP0RZLI2

$126.99

Availability: In Stock In Stock

New

  • Networking Interface: 2x2 WiFi dual band / Ethernet Gigabit
  • Ports: (1) 10/100/1000 Ethernet
  • Buttons: Reset
  • Antennas: 2 Dualband antennas
  • Wi-Fi Standards: 802.11a/b/g/n/ac
  • Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 8 Return);802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)(Supported Voltage Range: 44 to 57VDC)
  • Power Supply: 24V, 0.5A Gigabit PoE Adapter
  • Maximum Power Consumption: 8.5W
  • Max TX Power: 20 dBm
  • BSSID: Up to Four per Radio
  • Power Save: Supported
  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • Certifications: CE, FCC, IC
  • Mounting: Wall/Pole/Fast-Mount (Kits Included)
  • Operating Temperature: -30 to 70° C (-22 to 158° F)
  • Operating Humidity: 5 to 95% Noncondensing
  • VLAN: 802.1Q
  • Advanced QoS: Per-User Rate Limiting
  • Guest Traffic Isolation: Supported
  • WMM: Voice, Video, Best Effort, and Background
  • Concurrent Clients: 100+
  • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
  • 802.11ac: 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
  • 802.11b: 1, 2, 5.5, 11 Mbps
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Quantity:
  • Add to Wishlist
  • Add to Compare

High-performance, 802.11ac Wave 1 access point with dual, 2x2 MIMO WiFi antennas that can reach a 1.1+ Gbps aggregate throughput rate.

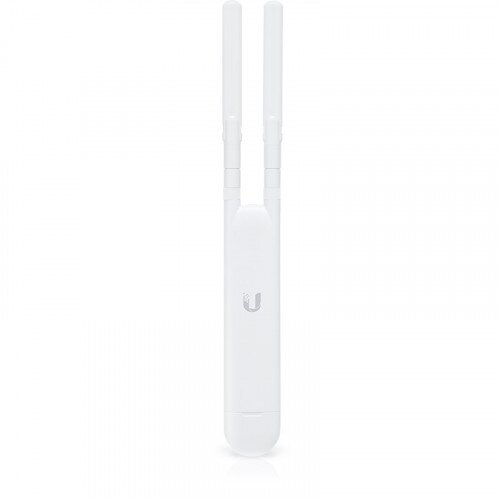

The Access Point AC Mesh (UAP AC Mesh) is a high-performance, outdoor-ready, dual-band, 802.11ac WiFi access point than can reach a 1.1+ Gbps aggregate throughput rate with its 5 GHz and 2.4 GHz bands. The UAP AC Mesh features two, omnidirectional WIFi antennas (2x2 MIMO) to provide robust and extensive wireless coverage 360° coverage, as well as (2) RP-SMA connectors that can be used in tandem with the antennae for customized pattern shaping. This access point is powered with either 802.3af PoE or 24V passive PoE and is equipped with (1) GbE RJ45 port for high-speed LAN connectivity. The UAP AC Mesh can be set up in minutes and fully managed with the UniFi Network web application or mobile app.

  • 802.11ac Wave 1 WiFi technology
  • Dual omnidirectional antennae with 2x2 MIMO functionality
  • 5 GHz band with an 867 Mbps throughput rate
  • 2.4 GHz band with a 300 Mbps throughput rate
  • (2) RP-SMA connectors for customized pattern shaping
  • Powered with 802.3af PoE or 24V passive PoE
  • GbE RJ45 port

In the Box

  • Ubiquiti UniFi AC Mesh 802.11AC Indoor/Outdoor Wi-Fi Access Points with Plug & Play Mesh Technology
  • Antennas (Qty. 2)
  • Wall Mount Bracket
  • Screws (Qty. 2)
  • Screw Anchors (Qty. 2)
  • Zip Ties (Qty.2)
  • Fast-Mount Adapter
  • Gigabit PoE (24V, 0.5A) with Mount Bracket
  • Power Cord
